Continuous Inkjet

Videojet® 1880 UHS

Continuous Inkjet

Videojet® 1880 UHS

Built on the 1880 + platform, the Videojet 1880 UHS extends its productivity and connectivity capabilities to ultra-high-speed production lines in the canning, beverage, and wire and cable industries. Engineered to deliver exceptional code quality and unwavering printer reliability, it delivers a transformative solution, where performance meets speed to revolutionize high throughput operations.

Consistent quality at high speed

  • Engineered for your most challenging applications
  • Refined design of printed characters enables impeccable performance
  • Enhanced printhead helps deliver consistent print quality, even at speeds surpassing 500 m/min


Simplify routine maintenance

  • Planned annual module replacement in less than 5 minutes with color-coded, easy-to-replace Videojet SmartCell™ components
  • Long periods between interventions and fewer necessary touches for maintenance
  • Significantly minimized maintenance downtime and optimal performance.

Unleash precision and performance

  • Compact printhead design for optimized drop positioning, enhanced drop control, and superior jet stability
  • Updated auto modulation routines and advanced hydraulics help to ensure consistent code quality
  • Over-molded umbilical for traversing applications delivers superior durability.

Maximize uptime

  • Innovative sensor helps to enable printhead ink build-up detection, alerting users to potential print quality issues before they escalate
  • Simplify printhead cleaning to just a push of a button with the auto-rinse feature, virtually eliminating ink-build-up-related code clipping
  • The 1880 UHS has an upgraded hydraulic management system, extended make-up tank, and the added flexibility of using larger, one-liter cartridges

Videojet® 1880 UHS

if you need more information don’t hesitate to contact us

Videojet® 1880 UHS

Continuous Inkjet


Line speed capability
Can print 1 to 3 lines of print at speeds of up to:
Single line max speed = 1,666 ft/min (508m/min)
Dual line max speed = 835 ft/min (254m/min)
Tri-line max speed = 588 ft/min (179m/min)
(10 characters per inch, single line of print)

Font matrix configuration
Single-line: 4×5, 5×5, 4×7, 5×7, 7×9, 9×12, 10×16, 16×24
Twin-line: 4×5, 5×5, 4×7, 5×7, 7×9
Tri-line: 4×5, 5×5, 4×7, 5×7

Linear bar codes
UPC A&E; EAN 8 & 13; Code 128 A, B & C; UCC/EAN 128; Code 39;
Interleaved 2 of 5; GS1

DataMatrix codes
10×10, 12×12, 14×14, 16×16, 8×18, 18×18, 20×20, 22×22, 24×24, 12×26,
8×32, 12×36, 16×36

QR codes
Error correction mode L, M, Q or H

Nominal character height
Selectable from 0.079” (2mm) to 0.40” (10mm), depending on font

Throw distance
Optimal: 0.591” (15mm)
Range: 0.354” (9mm) to 0.787” (20mm)

User interface
10.4” high-response TFT-LCD touch screen
WYSIWYG touch to edit message editing

Custom logo/graphics
Can be created via optional CLARiSOFT™ software*

Character sets
Chinese, Russian/Bulgarian, Turkish/Scandinavian, Romanian, Greek, Arabic,
Japanese/Kanji, Hebrew, Korean, East European and European/American

Languages and interface options
English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Serbian, Simple Chinese, Spanish, Swedish, Thai, Traditional Chinese, Turkish, and Vietnamese

Product detect input; Encoder input; Beacon (Alarm light) output; Relay output;
USB 2.0 (2x); Ethernet LAN™; Built-in Wi-Fi

Message storage
More than 250 complex messages

Environmental protection
IP55 standard, no plant air required, stainless steel cabinet
IP66 protected electronics optional

* CLARiSOFT ™Package Coding Design software required for certain bar codes and other
advanced functionality.

CleanFlow™ including positive air, no plant air required (optional)

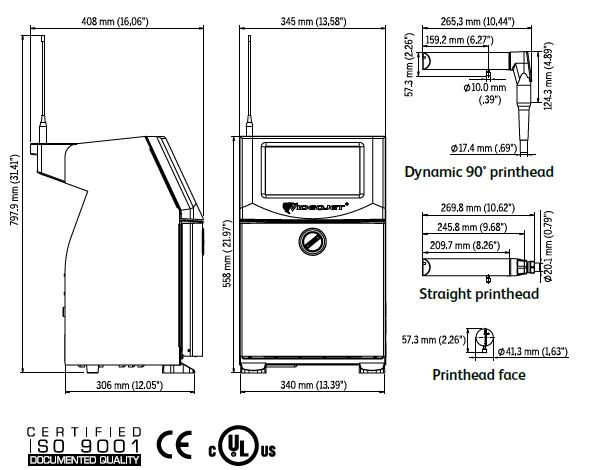

Diameter: 1.63” (41.3mm)
Length: 10.62” (269.8mm)

Printhead umbilical
Ultra flexible Length: 9.84’ (3m) optional 19.69’ (6m)
Diameter: 0.91” (23mm)
Bend radius: 4.0” (101.6mm)

Make-up consumption
2.7ml per hour (MEK at 20°C)

Fluids containers
Ink and Make-up Smart Cartridge™ 1.06 qt (1000ml); optional 0.793 qt (750ml)

Temperature/humidity range
41°F to 113°F (5°C to 45°C)
0% to 90% RH non-condensing
With selected inks; actual installation may require additional hardware based on production environment conditions

Electrical requirements
Nominal supply power 100-120 / 200-240 VAC at 50/60 Hz., 70W

Approximate weight
Unpacked and dry: 46.3lbs. (21kg)

Dust protection kit with CleanFlow™ technology
Dry air kit for high humidity (requires plant air)
Cellular communication
RS232 connector kit (USB to Serial DIN-5 male adapter)
SIMPLICiTY™ Workflow Modules
Wide range of accessories
