Continuous Inkjet

Videojet® 1580 C

Continuous Inkjet

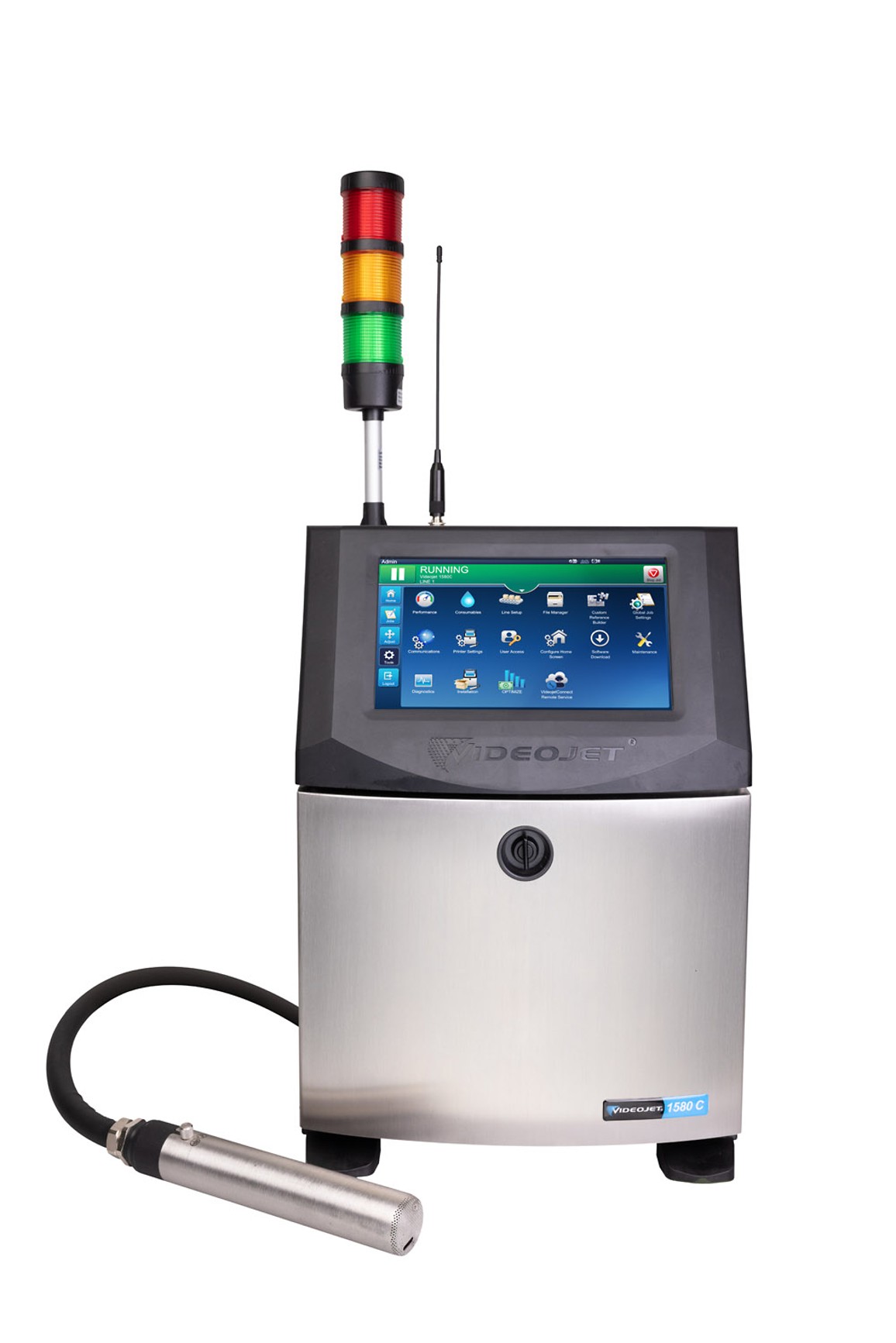

Videojet® 1580 C

A contrast printer that performs and behaves like a dye-based
printer, the Videojet 1580 C features innovations in hydraulics,
printhead, and cartridge designs that bring running time and
maintenance intervals to the same level as a standard
continuous inkjet (CIJ) printer. The 1580 C uses similar filters
as the rest of our CIJ range, with the same cleaning cycles and
preventive maintenance as a dye-based printer. Planned
maintenance can take place every 5000 hours, with no need
to reduce intervals because of using soft-pigmented inks. With
Videojet OPMTIMiZE software, the 1580 C can assess printer
efficiency and provide suggestions for improvement.

Uptime Advantage

  • Increase uptime with an additional 8 hours minimum of run time
    using a make-up reserve tank that protects your production under
    normal operating conditions
  • Patented cartridge design helps to reduce common faults by
    alleviating ink pigment settling in the cartridge and blocking the
    orifice, which can result in printhead clogging
  • Videojet Dynamic Calibration automatically maintains superior
    print quality, for optimum uptime under changing environmental

Code Assurance

  • Lower the opportunity for coding errors with intelligent message
    creation functionality
  • Automate code content without the need for operator
    interaction with user definable message rules
  • Maintain consistent quality and contrast over time with codes
    that remain readable and don’t fade over time

Simple Usability

  • Eliminate potential user errors through a Videojet SIMPLICiTY™
    interface that greatly reduces operator printer interactions
  • Easy to operate tablet-inspired 10” touchscreen display that is
    intuitive to you and translated to native language
  • Customize interfaces with built-in wizards, and access guided
    video tutorials for routine printer tasks

Built-in Productivity

  • Analyze your individual use patterns and receive printer
    improvement opportunities via on-screen alerts
  • Webserver capability allows access to printers via supported web
    browsers on host computers

Videojet® 1580 C

if you need more information don’t hesitate to contact us

Videojet® 1580 C

Continuous Inkjet

Line speed capability

Can print 1 to 5 lines of print at speeds of up to 889fpm (271mpm)
(10 characters per inch, single line of print)

Font matrix configuration
Single-line: 5×5, 5×7, 7×9, 9×12, 10×16, 16×24, 25×34
Twin-line: 5×5, 5×7, 7×9, 9×12, 10×16
Tri-line: 5×5, 5×7, 7×9
Quad-line: 5×5, 5×7
Five-line: 5×5

Linear bar codes*
UPC A&E; EAN 8 & 13; Code 128 A, B & C; UCC/EAN 128;
Code 39; Interleaved 2 of 5

QR codes
21×21, 25×25, 29×29, 33×33
Error correction mode L, M, Q or H

DataMatrix codes*
10×10, 12×12, 14×14, 16×16, 8×18, 18×18, 20×20, 22×22, 24×24, 12×26,
26×26, 8×32, 32×32, 12×36, 16×36, 16×48

Nominal character height
Selectable from 0.079” (2mm) to 0.40” (10mm), depending on font

Throw distance
Optimal: 0.472” (12mm)
Range: 0.197” (5mm) to 0.591” (15mm)

User interface
10.4” high-response TFT-LCD touch screen
WYSIWYG touch to edit message editing

Custom logo/graphics
Can be created via optional CLARiSOFTTM software
(CLARiSOFT Package Coding Design software required for advanced functionality)

Character sets
Chinese, Russian/Bulgarian, Turkish/Scandinavian, Romanian, Greek, Arabic,
Japanese/Kanji, Hebrew, Korean, East European and European/American

Languages and interface options
English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Serbian, Simple Chinese, Spanish, Swedish, Thai, Traditional Chinese, Turkish and Vietnamese

Product detect input
Encoder input
Beacon (Alarm light) output
Relay output
USB 2.0 (2x)
Ethernet LAN™
Built-in Wi-Fi

Message storage
More than 250 complex messages

Environmental protection
IP55 standard, stainless steel cabinet
IP65 protected electronics (optional with dust protection kit)

Heated printhead
CleanFlow™ including positive air, no plant air required (optional)

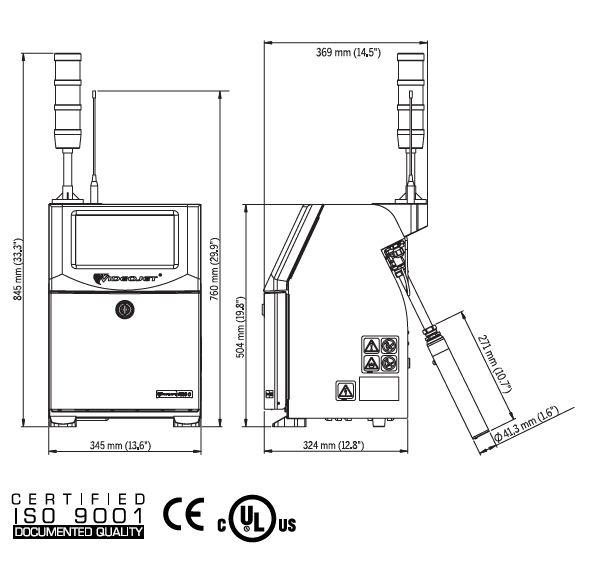

Diameter: 1.63” (41.3mm)
Length: 10.62” (269.8mm)



Printhead umbilical
Ultra flexible
Length: 9.84’ (3m) optional 19.69’ (6m)
Diameter: 0.91” (23mm)
Bend radius: 4.0” (101.6mm)

Make-up fluid consumption
5.0ml per hour (MEK at 20°C)

Fluids containers
Ink Smart Cartridge™ 0.740 qt. (700ml)
Make-up Smart Cartridge™ 0.793 qt. (750ml)

Temperature/humidity range
32°F to 122°F (0°C to 50°C)
0% to 90% RH non-condensing
With selected inks; actual installation may require additional hardware
based on production environment conditions

Electrical requirements
Nominal supply power 100-240 VAC at 50/60 Hz, 70W

Approximate weight
Unpacked and dry: 46.3lbs. (21kg)

Dust protection kit with CleanFlow™ technology
Dry air kit for high humidity (requires plant air)
RS232 connector kit (USB to Serial DIN-5 male adapter)
SIMPLICiTY™ Workflow Modules
Wide range of accessories
90 degree printhead
