Continuous Inkjet

Videojet® 1880 +

Continuous Inkjet

Videojet® 1880 +

The 1880 + continuous inkjet (CIJ) printer is built on the
high-speed 1880 platform, and redefines excellence
through enhanced design and comprehensive integrated
connectivity options. This printer delivers non-contact
inkjet printing for almost any substrate, including flat or
curved surfaces.
With a built-in vital sign monitoring system, smart alerts,
on-demand remote technical support, Wi-Fi connectivity,
and an advanced automated troubleshooting program, the
1880 + anticipates potential printer issues in time for you
to avoid them and enables you to recover faster should
downtime still occur.

Harness digital capabilities

  • Reduce downtime with the Videojet MAXIMiZE advanced
    diagnostics suite.
  • React sooner to faults and minimize the need for on-site service
    calls with VideojetConnect Remote Service
  • Recover from faults more quickly with RapidRecover automated
    troubleshooting engine

Right code at the right quality

  • Detect when printhead cleaning is required with the 1880 ink
    build-up sensor
  • Simplify printhead cleaning to just a push of a button with the
    Auto-rinse feature
  • Remove potential for human error with the suite of line
    integration and code management capabilities

Minimize operator interruptions

  • Go longer between printhead cleanings with intelligent start-stop
  • Increase make-up cartridge changeover interval by up to 2x with
    reduced make-up consumption and 1L cartridge option
  • Easily accommodate operator-performed annual maintenance
    that takes just 5 minutes per year

Natural fit in your line

  • Achieve maximum line productivity and reduce downtime with
    easy-to-replace SmartCell components
  • Reduce training from the intuitive SIMPLICITY user interface
    and on-board videos that guide users through common tasks
  • Select from a wide variety of safer, more sustainable inks
    engineered to meet your application

Videojet® 1880 +

if you need more information don’t hesitate to contact us

Videojet® 1880 +

Continuous Inkjet


Line speed capability
Can print 1 to 5 lines of print at speeds of up to 1,097fpm (334mpm)
(10 characters per inch, single line of print)

Font matrix configuration
Single-line: 4×5, 5×5, 4×7, 5×7, 7×9, 9×12, 10×16, 16×24, 25×34
Twin-line: 4×5, 5×5, 4×7, 5×7, 7×9, 9×12, 10×16
Tri-line: 4×5, 5×5, 4×7, 5×7, 7×9
Quad-line: 4×5, 5×5, 4×7, 5×7
Five-line: 5×5

Linear bar codes
UPC A&E; EAN 8 & 13; Code 128 A, B & C; UCC/EAN 128;
Code 39; Interleaved 2 of 5; GS1

DataMatrix codes
10×10, 12×12, 14×14, 16×16, 8×18, 18×18, 20×20, 22×22, 24×24, 12×26, 26×26,
8×32, 32×32, 12×36, 16×36, 16×48

QR codes
21×21, 25×25, 29×29, 33×33
Error correction mode L, M, Q or H

Nominal character height
Selectable from 0.079” (2mm) to 0.40” (10mm), depending on font

Throw distance
Optimal: 0.472” (12mm)
Range: 0.197” (5mm) to 0.591” (15mm)

User interface
10.4” 16:9 high-response TFT-LCD touch screen
WYSIWYG touch to edit message editing

Custom logo/graphics
Can be created via optional CLARiSOFT software*

Character sets
Chinese, Russian/Bulgarian, Turkish/Scandinavian, Romanian, Greek, Arabic,
Japanese/Kanji, Hebrew, Korean, East European and European/American

Languages and interface options
English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German,
Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish,
Portuguese, Romanian, Russian, Serbian, Simple Chinese, Spanish, Swedish,
Thai, Traditional Chinese, Turkish, and Vietnamese

Product detect input; Encoder input; Beacon (Alarm light) output; Relay output;
USB 2.0 (2x); Ethernet LAN; Built-in Wi-Fi

Message storage
More than 250 complex messages

Environmental protection
IP55 standard, no plant air required, stainless steel cabinet
IP66 protected electronics optional


*CLARiSOFT Package Coding Design software required for certain bar codes and other advanced functionality.

CleanFlowTM including positive air, no plant air required (optional)

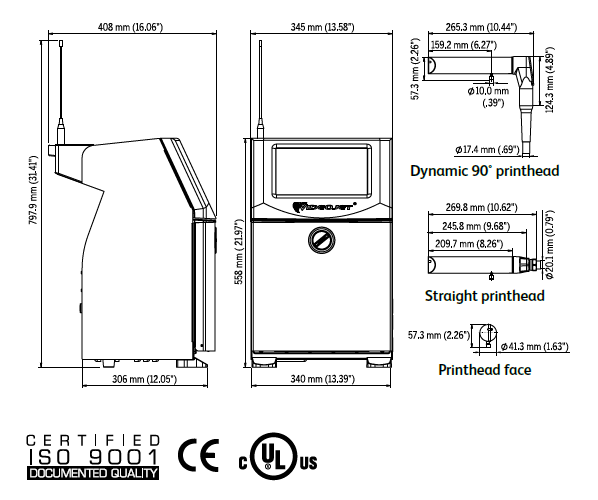

Diameter: 1.63” (41.3mm)
Length: 10.62” (269.8mm)

Printhead umbilical
Ultra flexible Length: 9.84’ (3m) optional 19.69’ (6m)
Diameter: 0.91” (23mm)
Bend radius: 4.0” (101.6mm)

Make-up consumption
As low as 3.5ml per hour (MEK at 20°C)

Fluids containers
Ink and Make-up Smart Cartridge 1.06 qt (1000ml); optional 0.793 qt (750ml)

Temperature/humidity range
32°F to 122°F (0°C to 50°C)
0% to 90% RH non-condensing
With selected inks; actual installation may require additional hardware
based on production environment conditions

Electrical requirements
Nominal supply power 100-120 / 200-240 VAC at 50/60 Hz., 70W

Approximate weight
Unpacked and dry: 46.3lbs. (21kg)

Dust protection kit with CleanFlow technology
Dry air kit for high humidity (requires plant air)
Cellular communication
RS232 connector kit (USB to Serial DIN-5 male adapter)
SIMPLICiTY Workflow Modules
Wide range of accessories
