Mechanical Self-Expanding Chucks Narrow Style With Sectors
Mod. 713 MA

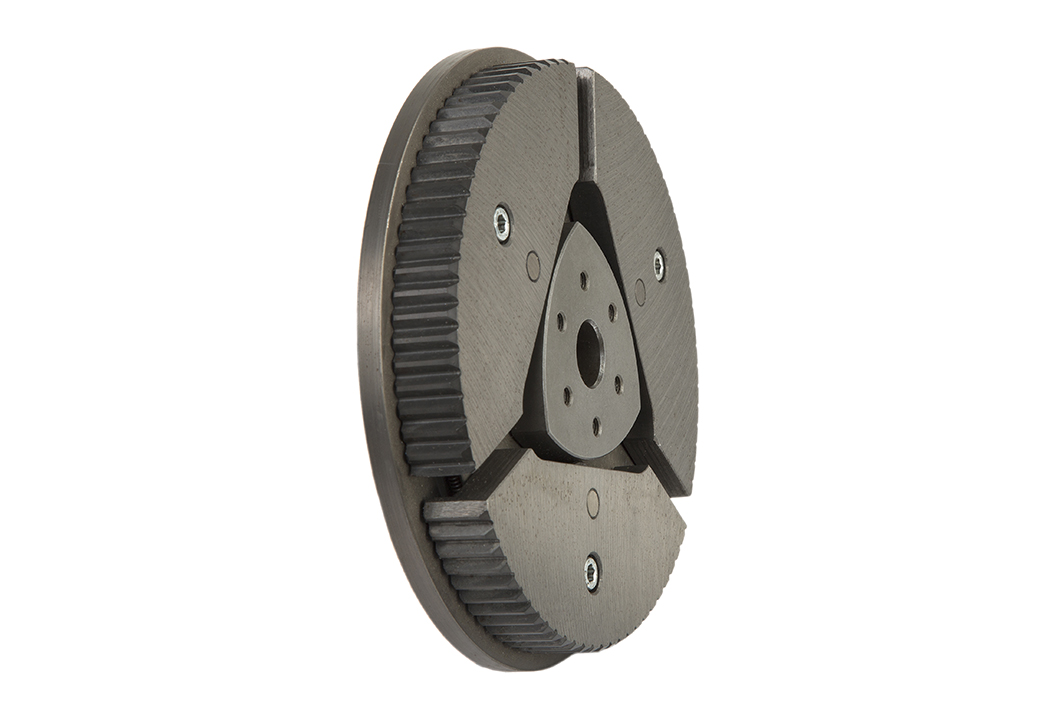

The Svecom-PE 713 MA Mechanical Self-Expanding Chuck is designed for winding and unwinding applications involving steel or cardboard cores. Its compact, narrow-profile construction makes it particularly suitable for installations where available space is limited.
Unlike conventional designs that use expanding leaves, the 713 MA features thinner expanding sectors, allowing for a more compact chuck body without compromising its coregripping functionality.
The expanding sectors are assembled around a concentric cam mechanism and are activated by the rotational movement of the reel. This self-expanding system automatically adjusts the gripping force in response to material tension, ensuring secure core engagement during winding and unwinding operations.
With its space-saving design and automatic expansion mechanism, the Svecom-PE 713 MA provides a practical solution for applications requiring reliable core gripping in confined installation spaces.
