Mechanical Self-Expanding Chucks With Leaves
Mod. 711 MA

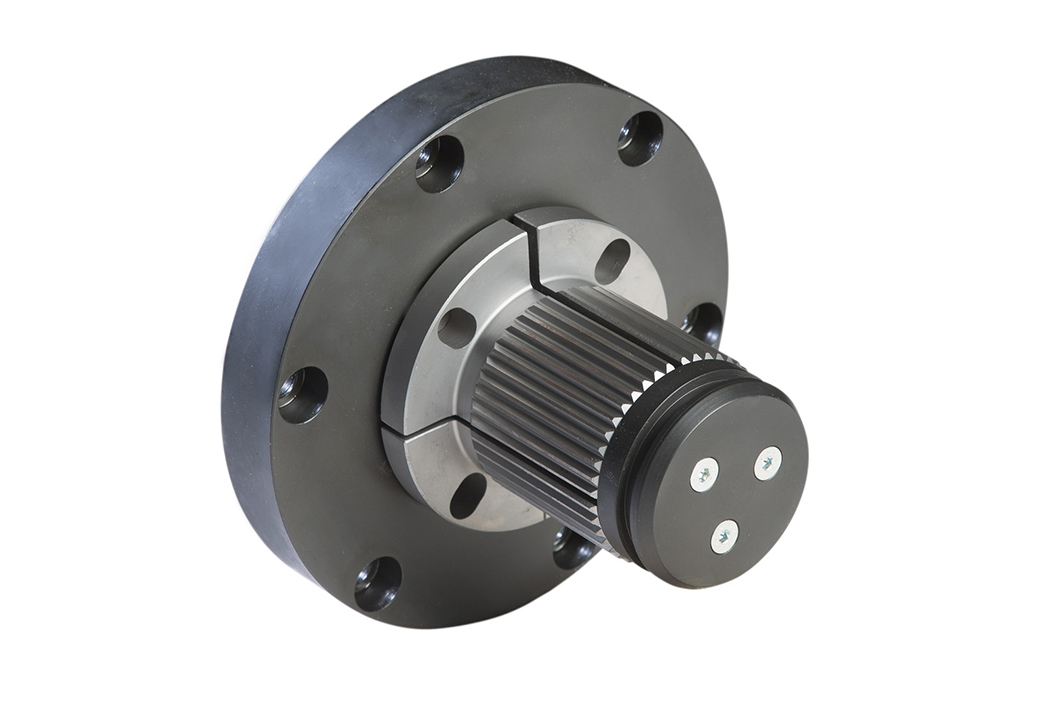

The Svecom-PE 711 MA Mechanical Self-Expanding Chuck is primarily designed for unwinding applications involving steel and cardboard cores. It is particularly suitable for handling heavy reels at high operating speeds while maintaining precise core centering and reliable gripping.
The chuck body and expanding leaves are manufactured entirely from steel, providing strength and durability for demanding industrial operations. The flange mounting is customdesigned to suit specific machine configurations, while the stepped design option allows the chuck to accommodate different core sizes.
The self-expanding mechanism features expanding leaves mounted on a cam. As the reel rotates, the combination of rotational movement and web tension activates the expanding elements, ensuring a secure grip on the core throughout the unwinding process.
With its robust steel construction, automatic expansion system, and adaptable design, the Svecom-PE 711 MA offers a reliable solution for high-load, high-speed unwinding applications that require precise core alignment.
