Pneumechanical Expanding Chucks With Lugs
Mod. 714 MZ-C

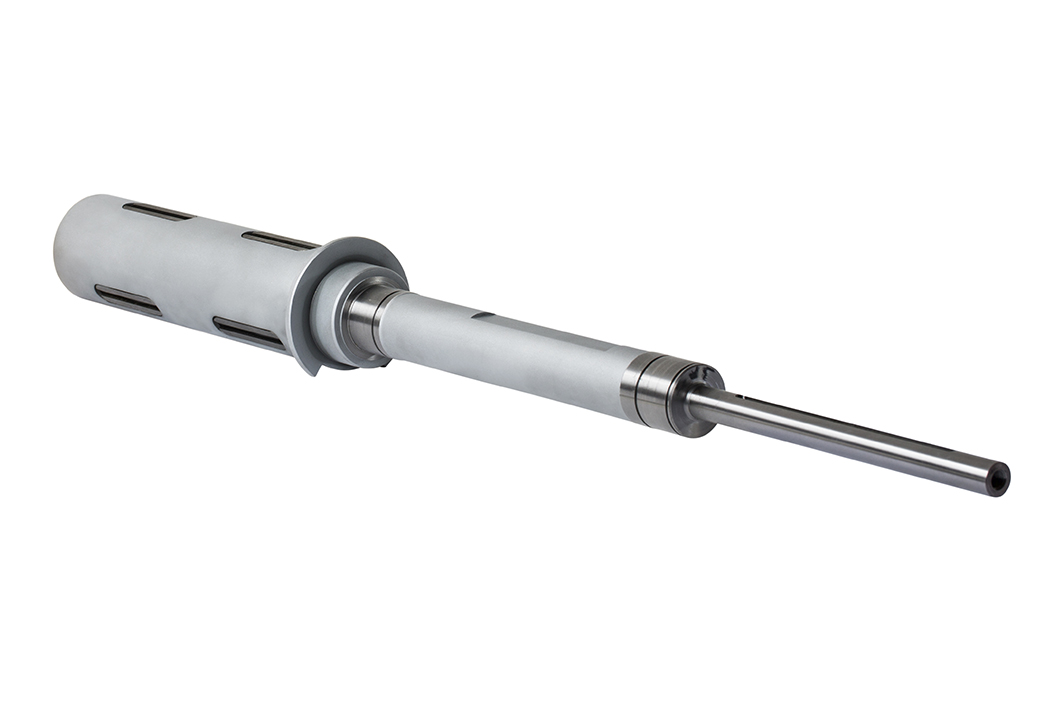

The Svecom-PE 714 MZ-C Pneumechanical Expanding Chuck is designed for both winding and unwinding applications that require precise centering and reliable core gripping. It is particularly suitable for operations involving heavy reels, high operating speeds, and demanding torque requirements.
The chuck body and expanding lugs are manufactured entirely from steel, ensuring strength and durability under demanding working conditions. For installation flexibility, the 714 MZ-C is available with either flange mounting or shaft extension configurations.
The expansion mechanism uses one or more air-actuated pistons to mechanically engage the expanding lugs, providing a secure grip on the core. An optional spring-activated expansion system is also available, helping maintain core gripping even in the event of air pressure loss.
For applications involving different core diameters, interchangeable adapters can be fitted to a single base chuck, allowing quick and convenient adaptation to various core sizes without replacing the entire unit.
Combining robust construction, precise centering, and flexible configuration options, the Svecom-PE 714 MZ-C delivers reliable performance for demanding winding and unwinding operations.
