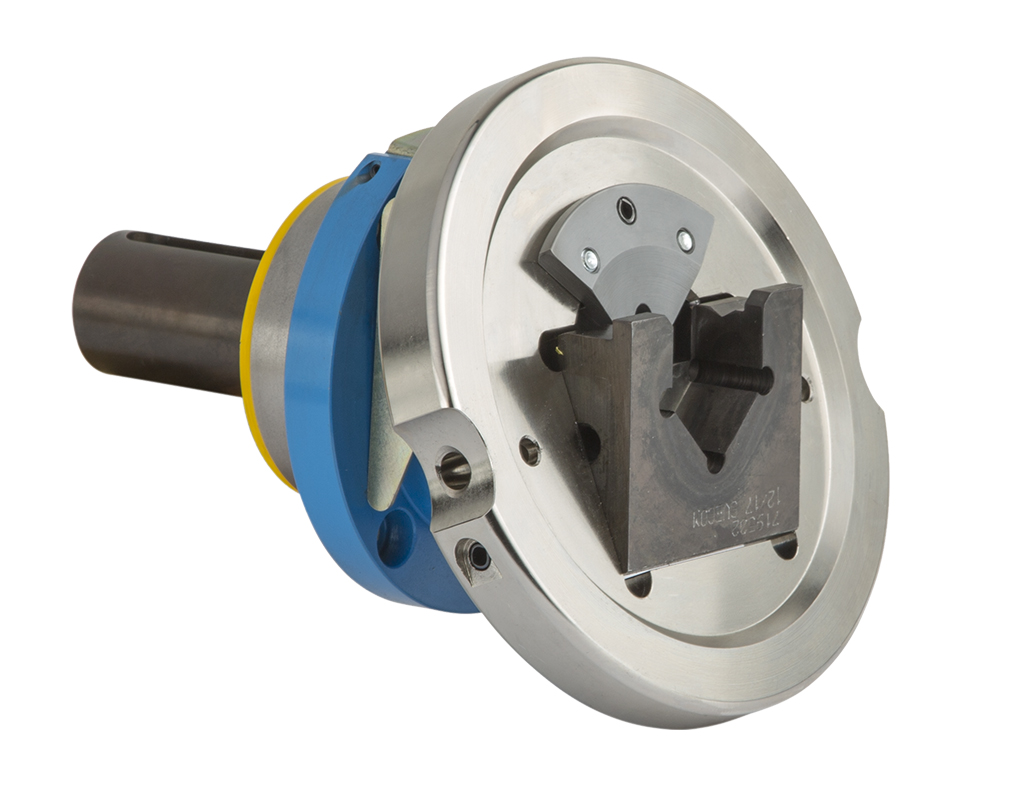

Mechanical Safety Chucks With V Squared Shaped And Tilting Ring
Mod. 910
The Model 910 Mechanical Safety Chuck is designed for rewinding and unwinding roll materials using expanding air shafts. Its tilting ring mechanism enables easy and efficient roll loading and unloading without the need to move the air shaft.
Featuring a tilting disc opening and a square-to-square coupling positioned at 45°, this safety chuck is available with or without a shaft to accommodate different machine configurations and operational requirements.
A range of tilting and sliding models is available to support various load capacities and application needs.
For flexible installation, all models can be mounted either on a foot or via a flange, allowing easy integration into different industrial machinery setups.
