VISCOSITY CONTROLS

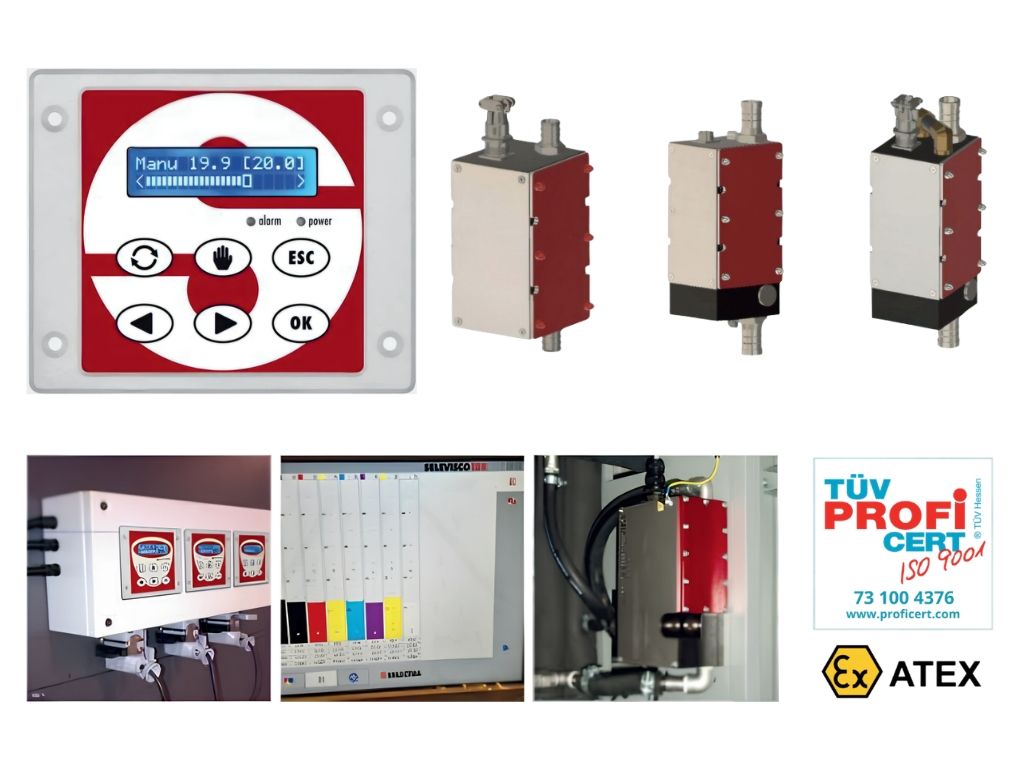

This VC , measure and correct fluids viscosity. The system operates through a measuring head placed in line with the flow, a control panel for the display and regulation of the rheological characteristics, and, additionally, multiple accessories which complete the system’s operativity.

•  Operator’s friendly

The mangaina software allows data recordina or recipes offerina set up and operational repeatabi ity. The data displaying and the controls are incor porated into individual synoptics for each measuring unit. Alternatively the measuring head can be connected to touch screen operational interface based onWindows platform.

• Extremely high precision

Granting an outstanding reading tolerance. The system intearates a temperature and pH contro [option). Minimum maintenance. the absence o movina elements eliminates necessity of freguent lenance.

• Application inline vibrating sensor

The measurina head is protected by a very resistant capsule of small dimensions integrating prope anchoring arrangements in very limited spaces. The application is normally suggested between the pumpina svstem and the chamber doctor blade o the ink tray.

• Application offline vibrating sensor

Based on the vibrating technology, offline sensor is installed directly into the tank granting a grea simplicity of use. Offline sensor is very easy to clean and robust to chemical corrosion due to a teflor coating protection .

Technical information:

• • Measuring accuracy: 0.1 second (Ford-4)
  • Measuring range: 9.. 140 second (Ford 4)
  • Explosion proof system with ATEX Eexi degree of protection Built-in temperature sensor
  • pH sensor with automatic control of acidity (option)
  • inline or offine version
  • Communication protocol: RS485 Modbus
  • Application fields: rotogravure, flexo inks, varnishes coating, adhesives, lacquers, chemicals
