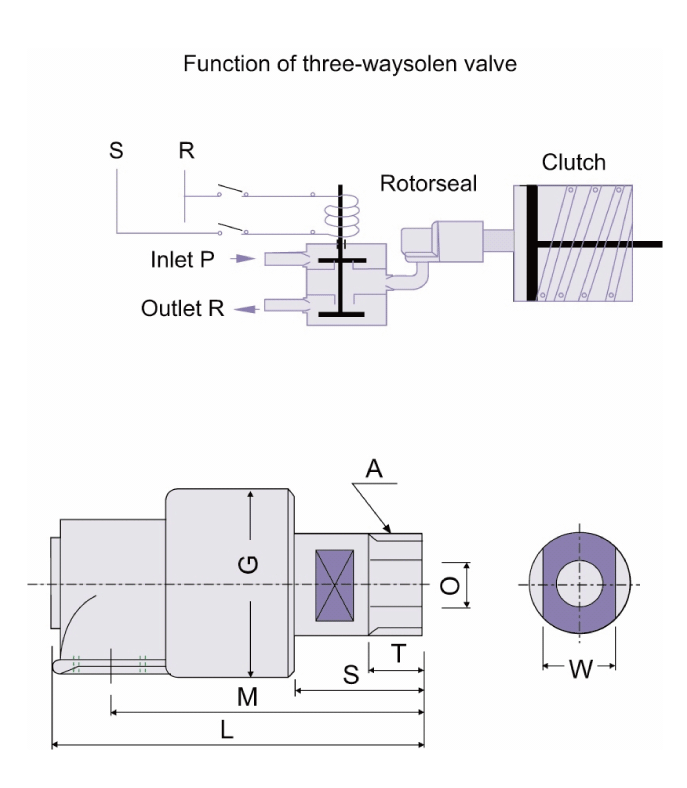

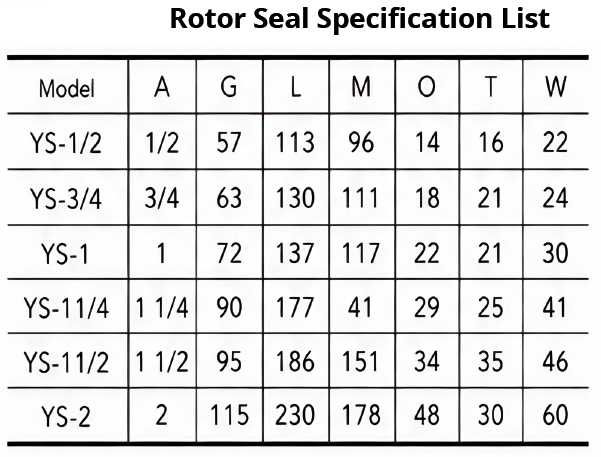

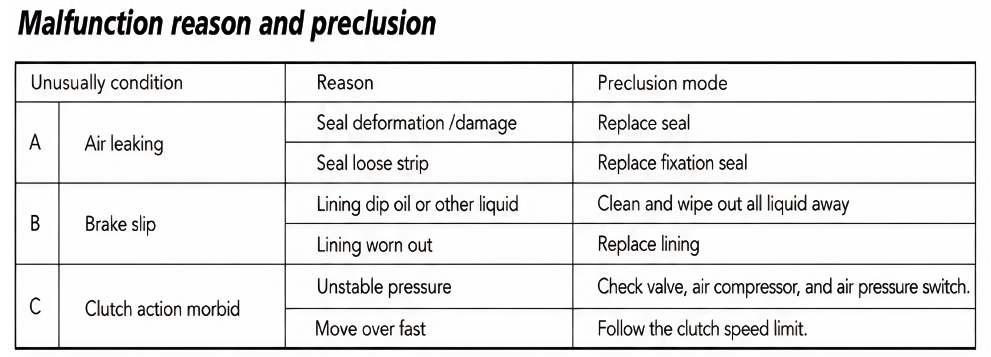

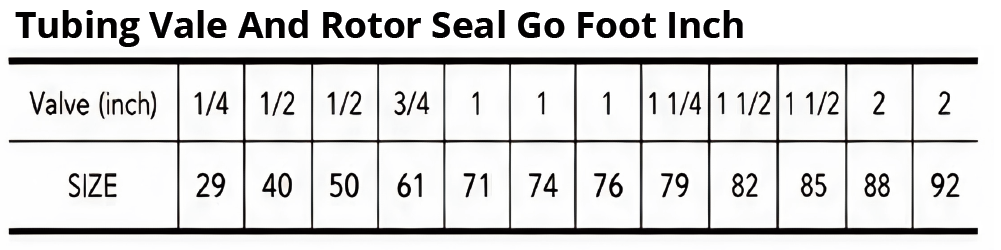

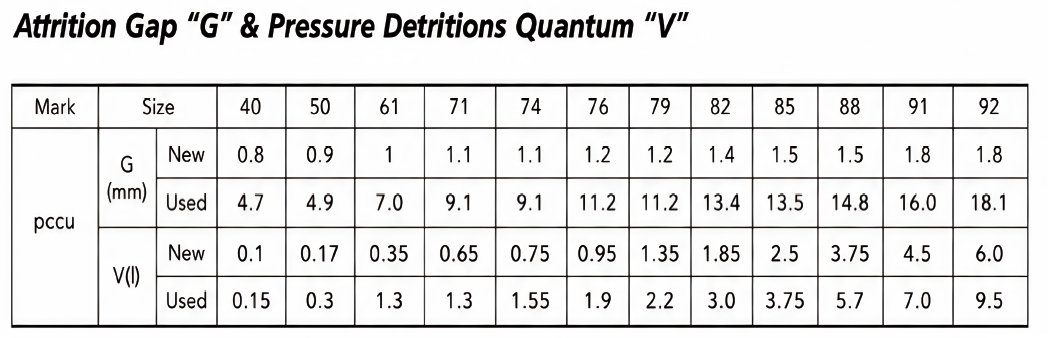

PCCU ACCESSORIES FOR INSTALLATION

PCCU INSTALL EXAMPLES

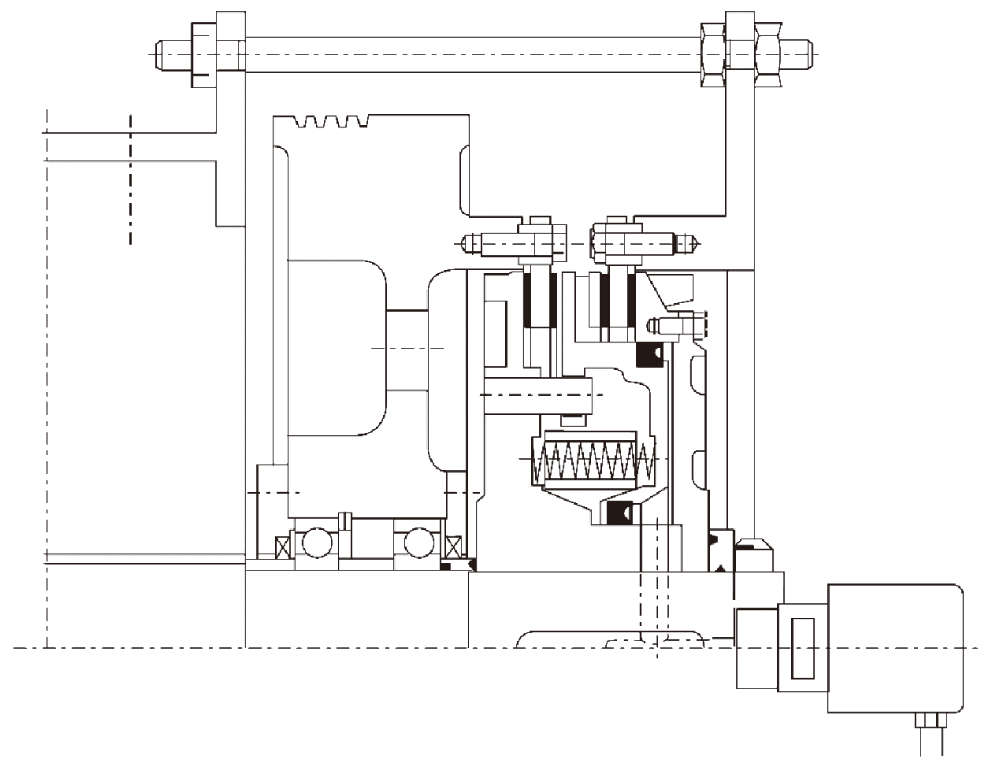

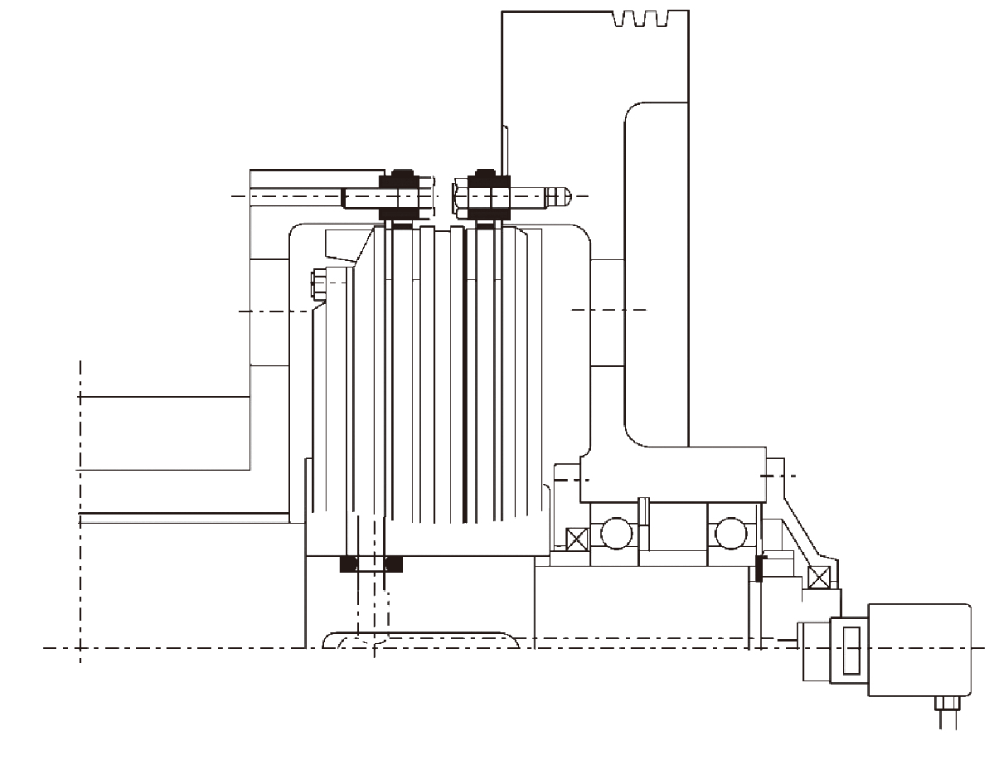

PCCU-TT : clutch-broke combined unit with 12-point plate suspension; arronged between flywheel and flywheel cover of a press drive.

PCCU-TT : clutch-broke combined unit with l2-point suspension in friction block version; arranged between mochine frame and flywheel.

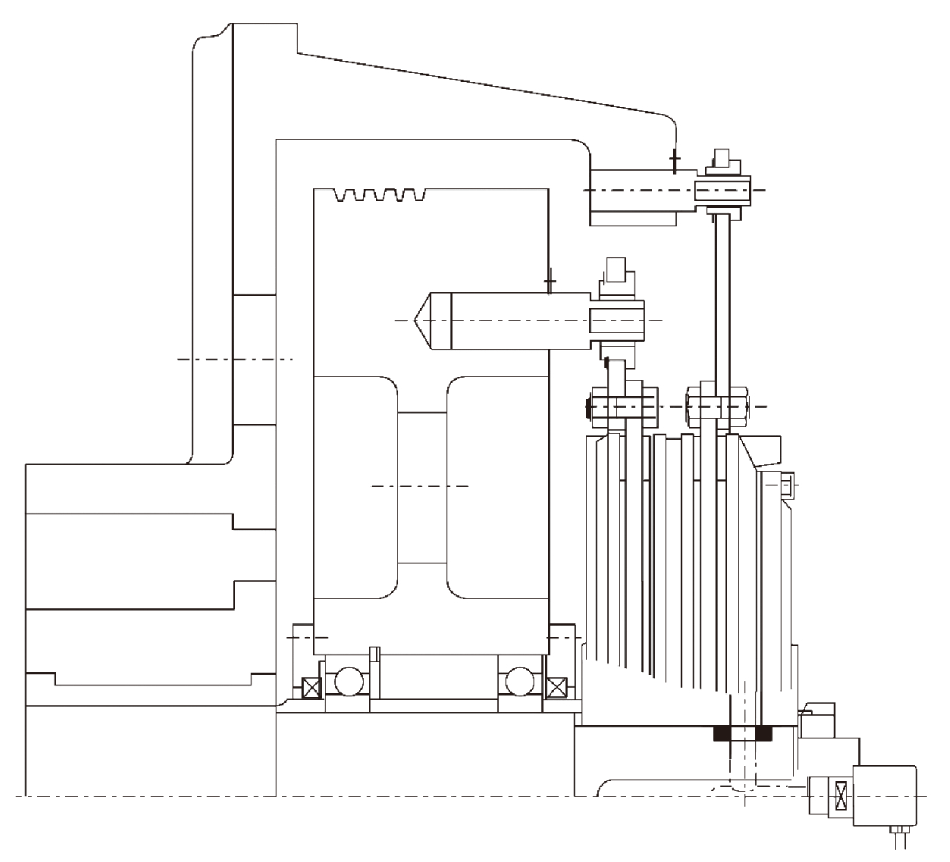

PCCU-SL : clutch/broke combined unit with short and long lugs for two-point plate suspension; to flywheel and fixing arms (PCCU-SL)

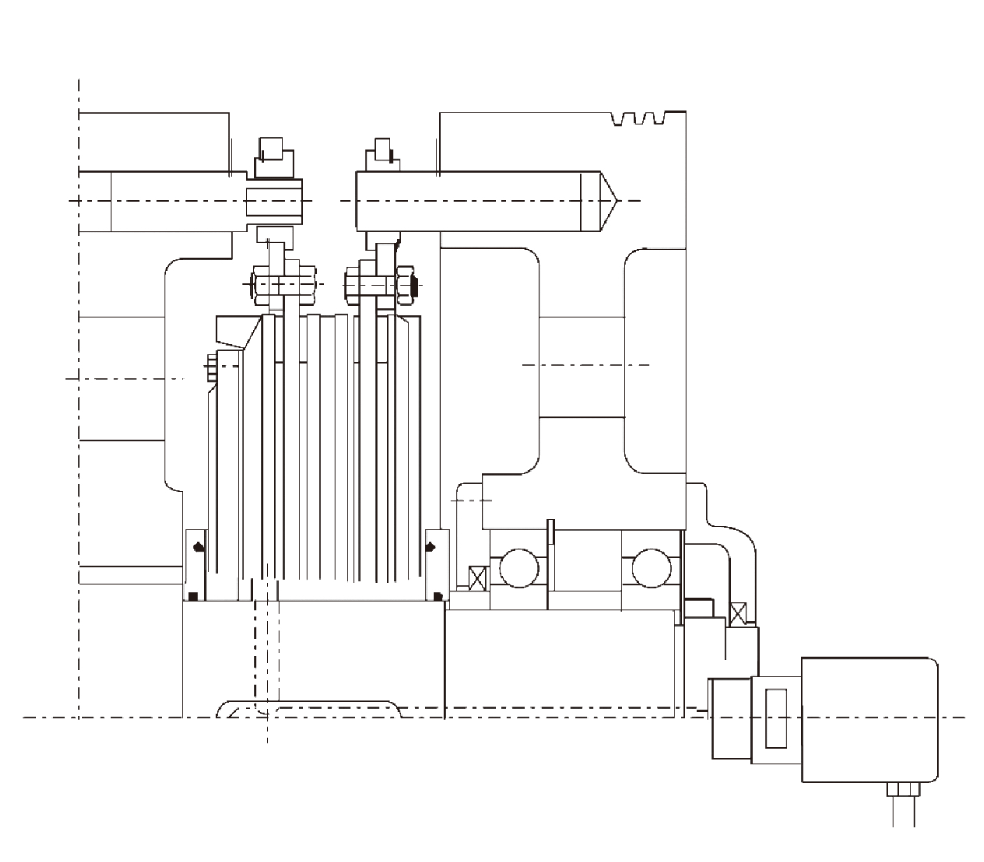

PCCU-SS : clutch-broke combined unit with short lugs for two-print plate suspension; arranged between machine frame and flywheel
