PCCU SELECTION

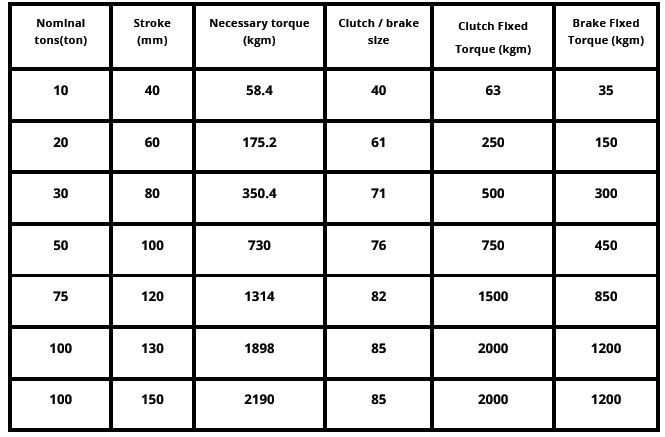

Clutch / Brake Table – 1 :

• The occurrence position of the pressure angle is in front of 17 (around the dead corner)
• The operating air pressure 6kg/cm2
• This table is available for the flywheel punching

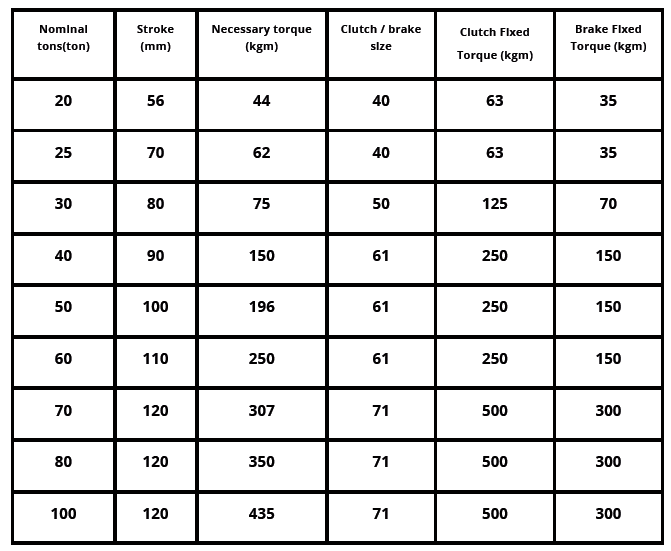

Clutch / Brake Table – 2 :

• The occurrence position of the pressure angle is in front of 26 (around the dead corner)
• The operating air pressure 6kg/cm2
• This table is available for the flywheel punching.

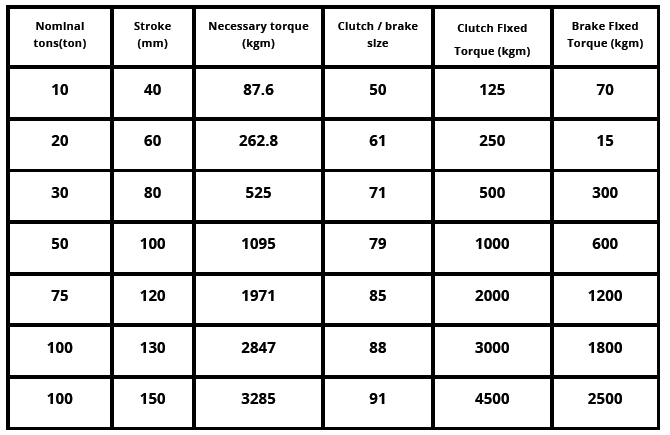

Clutch / Brake Table – 3 :

• Regarding 10-30 tons, the occurrence position of the pressure angle is in front of 3mm around the dead corner, and 40-100 tons is in front of 6mm around the dead corner.
• The operating air pressure 6kg/cm2
• This table is available for the flywheel punching.
